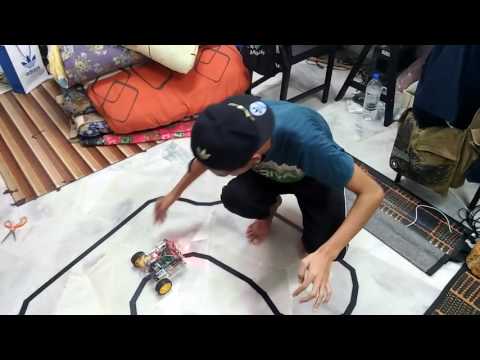

Complete Robot after fixed the error.

After troubleshooting done and some of faulty error has been fixed. We finally met with our goal. all the effort gave us the good result for our robot assignment, thanks also to our lecturers for their recommendations and solutions. Finally, the robot is  working fine as we planned and can move according to the black tape without any problem.

Problem fixed.
1. Sensor
    We change the sensor from 3 sensor to 5 sensor because 3 sensor is not enough for the robot to            detect the curve or junction of the tape.
2. PWM code.
    We also adjust the speed of the motor so that the sensor can detect and measure the tape correctly.
3. Robot's body.
    We also made some modification to the robot's body so that the robot will move smoothly.
